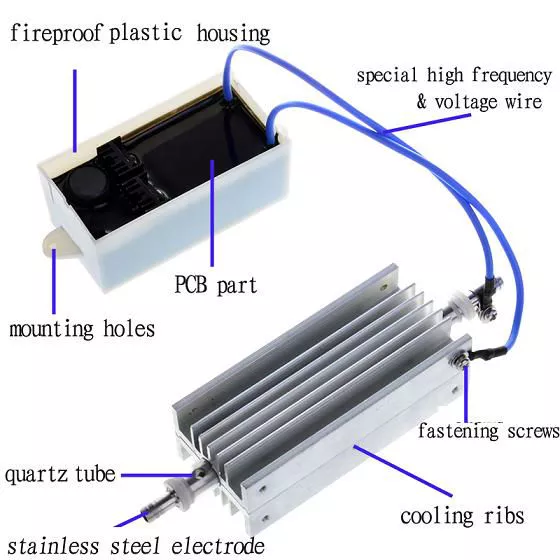

This ozone generator cell parts use the latest Quartz Tube and Stainless Steel Electrode technology
which produce stable ozone output and high ozone concentration You can save lots of costs as they have a life of over 10,000 hours and high performance.
1. Ozone output: 1000 mg/h
2. Ozone generator: Quartz Tube and Stainless steel Electrode
3. High ozone concentration: > 5.0 mg/L at 1 L/min
4. Light weight: only 0.35 Kg
5. Long Life: > 10,000 hours
6. Low power consumption

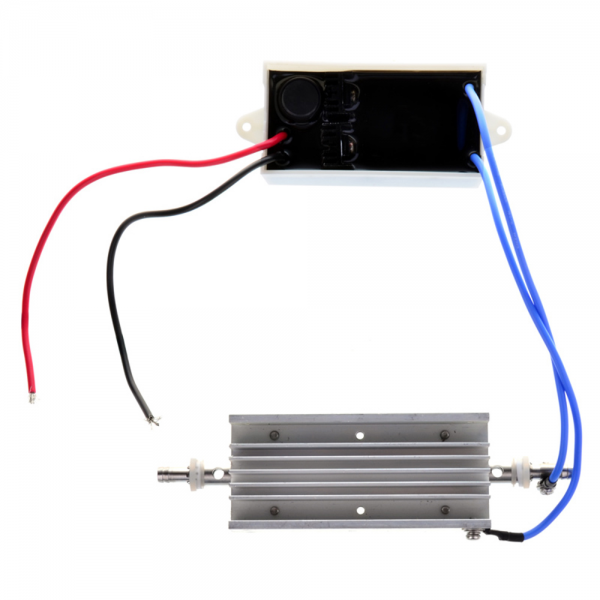

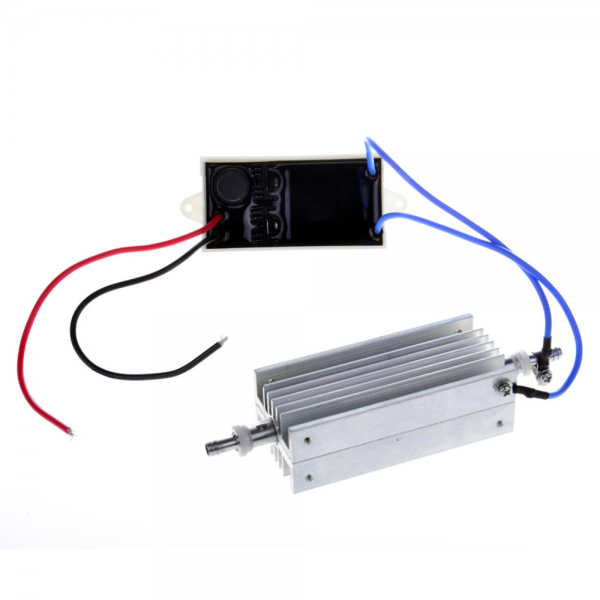

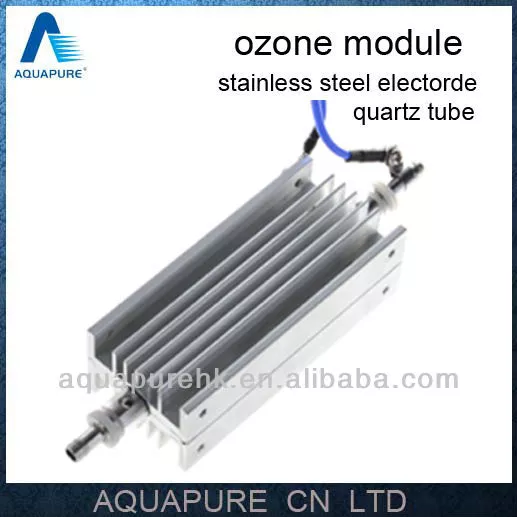

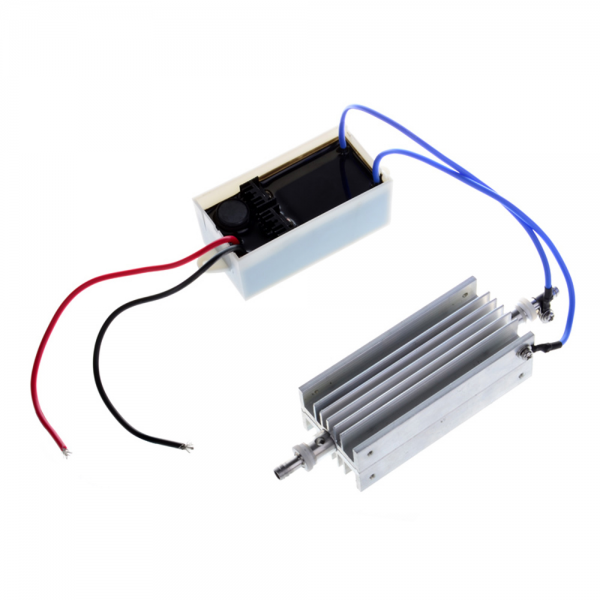

Ozone Module OZQS1.0-D 12V DC Ozone Generator Cell Parts with Ozone Output 1000mg/h
This ozone generator cell parts use the latest Quartz Tube and Stainless Steel Electrode technology
which produce stable ozone output and high ozone concentration You can save lots of costs as they have a life of over 10,000 hours and high performance.
1. Ozone output: 1000 mg/h
2. Ozone generator: Quartz Tube and Stainless steel Electrode
3. High ozone concentration: > 5.0 mg/L at 1 L/min
4. Light weight: only 0.35 Kg
5. Long Life: > 10,000 hours
6. Low power consumption
7. Two different applications: a) for air application; b) for water application
TECHNICAL SPECIFICATION:
|
Ozone Output |
1.0 g/h at 5.0 L/min |
|
Ozone concentration |
> 5.0 mg/L at 1.0 L/min air flow |
|
Gas source |
Dry air or oxygen source recommended |
|
Air Flow |
value 5.0 L/min for air application, < 20 L/min for water application |
|
Output connections |
5.0 mm diameter |
|
Continuous operation |
24 h/day |
|
Cooling system |
Air cooling, 40 CFM fan recommended |
|
Ozone generating method |
Corona discharge, Stainless steel electrode |
|
Input voltage |
12 V DC |
|
Power |
22 W |
|
Operating temperature |
-10 deg C ~ +60 deg C |
|
Storage temperature |
-20 deg C ~ +70 deg C |
|
Size Generator |
90 x 40 x 30 mm |
|
Size Electronics |
78 x 40 x 33 mm |
|
Weight |
0.35 Kg |
.png)
TECHNICAL SPECIFICATION:
|
Ozone Output |
1.0 g/h at 5.0 L/min |
|
Ozone concentration |
> 5.0 mg/L at 1.0 L/min air flow |
|
Gas source |
Dry air or oxygen source recommended |
|
Air Flow |
value 5.0 L/min for air application, < 20 L/min for water application |
|
Output connections |
5.0 mm diameter |
|
Continuous operation |
24 h/day |
|
Cooling system |
Air cooling, 40 CFM fan recommended |
|
Ozone generating method |
Corona discharge, Stainless steel electrode |
|
Input voltage |
12 V DC |
|
Power |
22 W |
|
Operating temperature |
-10 deg C ~ +60 deg C |
|
Storage temperature |
-20 deg C ~ +70 deg C |
|
Size Generator |
90 x 40 x 30 mm |
|
Size Electronics |
78 x 40 x 33 mm |
|
Weight |
0.35 Kg |
