Medical ozone generator

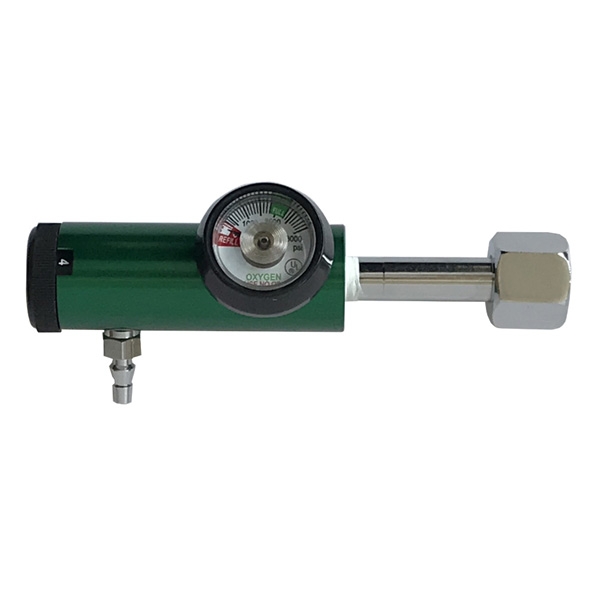

Oxygen Regulator CGA540

This Oxygen regulator is for Industrial Oxygen Tank with 5/8" nut. The type is CGA540, 0-4L for pediatric use. It is widely used in America, Canada, Mexico, China, and many other countries.

Fast contact

  • Oxygen Regulator CGA540

    The Oxygen Flow Regulator is designed to reduce the pressure and control the flow of oxygen from an oxygen cylinder or tank.
    This Oxygen regulator is for Industrial Oxygen Tank with 5/8" nut. The type is CGA540, 0-4L for pediatric use. It is widely used in America, Canada, Mexico, China, and many other countries.
    When you would like to choose an oxygen regulator for your oxygen tank for ozone therapy applications, the below information would be helpful for you :
    1> choose the qualified oxygen regulators ONLY ! The bad quality products might offer you inaccurate oxygen flow, and thus you could NOT get the right ozone concentrations for treatment AT ALL !
    2> choose the pediatric size, which available to get small flow oxygen flow rate as 1/32, 1/16, 1/8, 1/4 litter per minute.
    3> choose the right type of oxygen regulator for your oxygen tank. There are different types of oxygen tank valve in different countries.

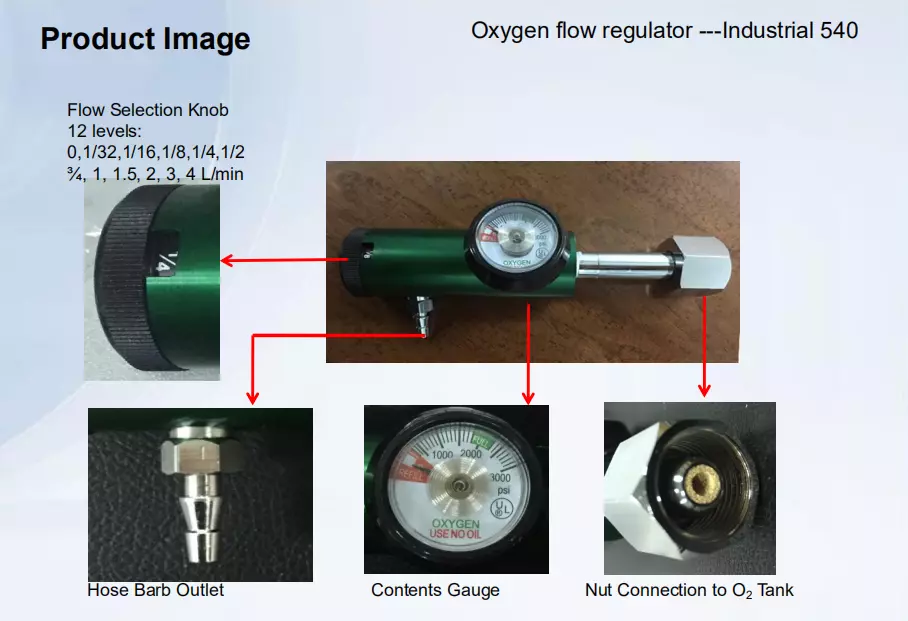

    BS OXYGEN REGULATOR -   SPECIFICATIONS
    Regulate Range of flow
    0 -- 1/32 -- 1/16 --1/8 --1/4 -- 1/2 -- 3/4 -- 1 -- 1.5 -- 2 -- 3 -- 4 L/MIN
    (12 levels)
    Valve Type
    CGA540
    Color
    Green
    Maximum Pressure of Gauge
    3000 PSI (20 MPa)
    Pressuge of Gas Outlet
    50 PSI (0.3 MPa)
    Outlet Connector
    Barb Outlet
    Material
    Brass Internal with Aluminum Shell
    Product Size(L x W x H)
    Length 16.5cm, Dia. 34mm
    Product Net Weight
    0.44 kg
    Master Carton box
    20pcs/carton box; 10.5 kg

    Packing
    YOUMO AQUAPURE  Oxygen Flow Regulators
    1>. Standard export carton packing
    2>. 20pcs/carton box
    3>. carton box size:195*70*65mm
    4>. gross weight of carton box: 10.5 kg
    Delivery
    1> samples------------within 2 days after payment arrive
    2> batch orders-------2-30 days after payment deposit
