Medical ozone generator

Bullnose Oxygen Regulator

12 Accurate Flows Pediatric BullNose Oxygen Tank Regulator


Bullnose oxygen regulator for UK, AU, NZ, ZA, etc

0~4 LPM oxygen flow rate adjustable
for ozone therapy machines


Fast contact

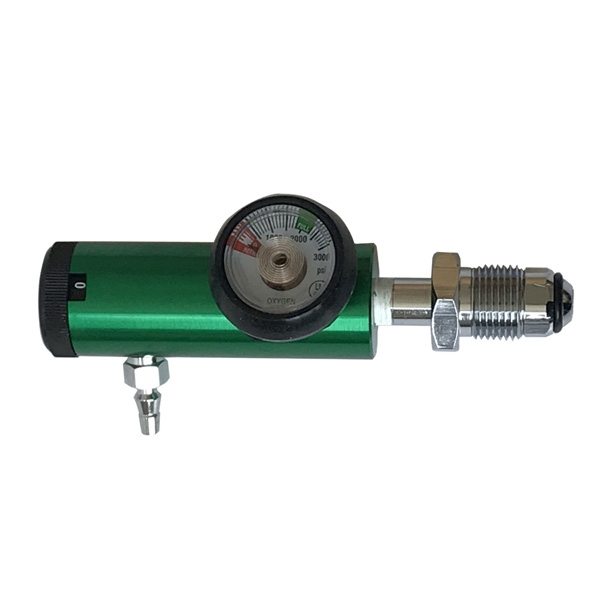

  • The Oxygen Flow Regulator is designed to reduce the pressure and control the flow of oxygen from an oxygen cylinder or tank.
    This Oxygen Regulator is the standard Bullnose type, and for pediatric use.
    The bull nose head will allow you to connect a low flow regulator to a BS341-3 tank with a 5/8" right hand internal thread Countries that currently use these tanks include Australia, the United Kingdom, South Africa, India, etc.
    When you would like to choose an oxygen regulator for your oxygen tank for ozone therapy applications, the below information would be helpful for you :
    1> choose the qualified oxygen regulators ONLY ! The bad quality products might offer you inaccurate oxygen flow, and thus you could NOT get the right ozone concentrations for treatment AT ALL !
    2> choose the pediatric size, which available to get small flow oxygen flow rate as 1/32, 1/16, 1/8, 1/4 litter per minute.
    3> choose the right type of oxygen regulator for your oxygen tank. There are different types of oxygen tank valve in different countries.

    BS OXYGEN REGULATOR -   SPECIFICATIONS
    Regulate Range of flow
    0 -- 1/32 -- 1/16 --1/8 --1/4 -- 1/2 -- 3/4 -- 1 -- 1.5 -- 2 -- 3 -- 4 L/MIN
    (12 levels)
    Valve Type
    Bullnose (G5/8 outer thread)
    Maximum Pressure of Gauge
    Gauge with 3000 PSI (20 MPa), Full at 2200 PSI
    Pressuge of Gas Outlet
    50 PSI (0.3 MPa)
    Outlet Connector
    Barb Outlet
    Product Size(L x W x H)
    Length 15.65cm, Dia. 34mm
    Product Net Weight
    0.44 kg
    Master Carton box
    20pcs/carton box; 10.5 kg


    Packing

    YOUMO AQUAPURE  Oxygen Flow Regulators


    1>. Standard export carton packing
    2>. 20pcs/carton box
    3>. carton box size:195*70*65mm
    4>. gross weight of carton box: 10.2 kg

    Delivery

    1> samples------------within 2 days after payment arrive
    2> batch orders-------2-30 days after payment deposit
