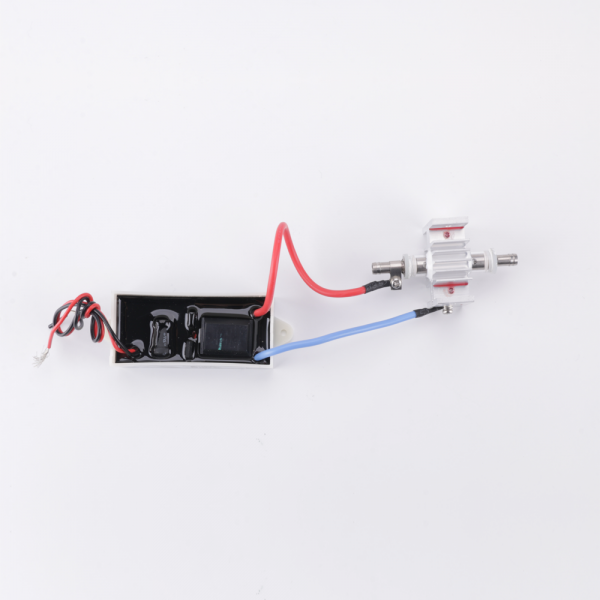

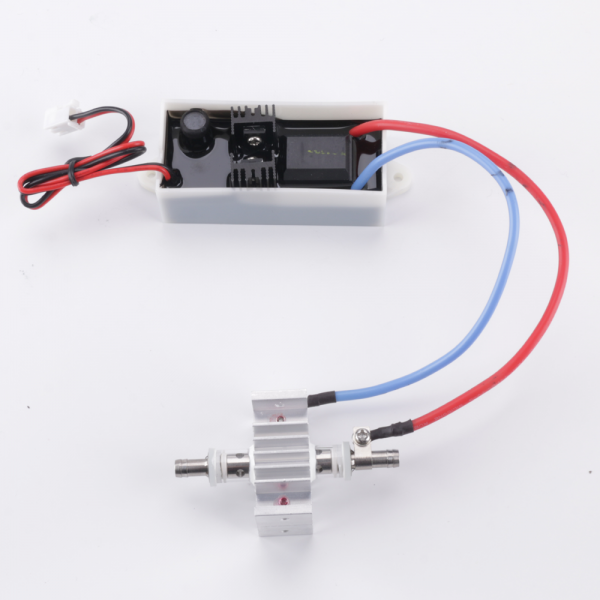

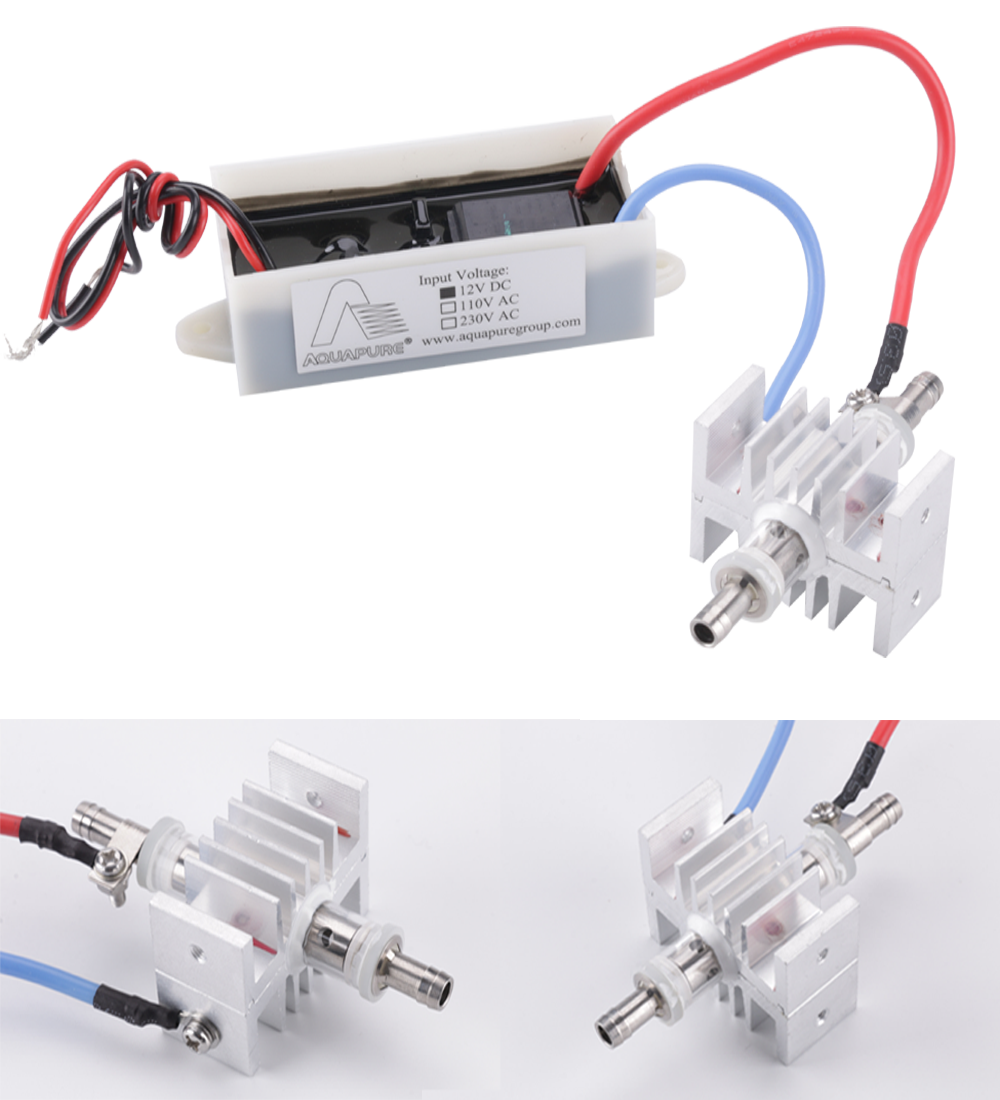

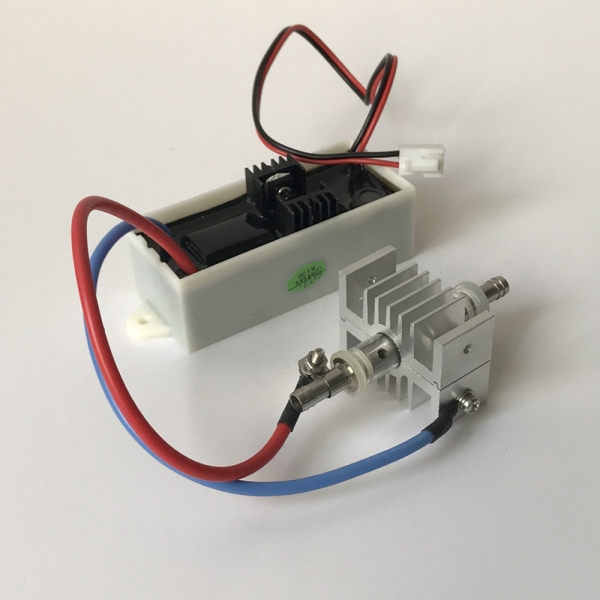

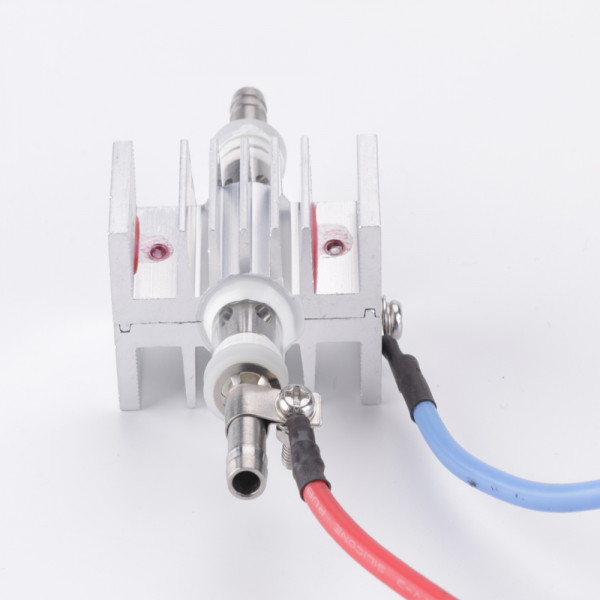

AQUAPURE Titanum and pure quartz medical ozone generator cell OZQT0.2-D
Brief introduction:
AQUAPURE ozone cell module uses the latest Quartz tube with SS or Titanium electrode technology, which is the best to get stable ozone output and high ozone concentration.
The stability is better and life is a lot longer longer when using Titanium electode with 99% pure quartz tube. This series of ozone cell module can be widely applied in many applications, especially ozone therapy applications.
Features:
---- 100% test for ozone concentration & ozone output
---- 100% inside ozone tolerance
---- 100% life burning test
---- 100% ozone compatible material
---- Suitable for water treatment/air treatment/medical treatment
---- 100mg/h-300mg/h ozone output for adjust
Production Specifications
please contact us for ozone test reports
| Model number |
OZQT0.2-D |
Ozone Conccentration
|
10 -104 ug/mL with 0 - 1 Lpm oxygen source
|
Ozone Output 1
|
200 mg/h at 1.0 L/min dry air
|
Ozone Output 2
|
300 mg/h at 2.8 L/min normal air
|
Gas source
|
Ambient air, dry air and oxygen source
|
Ozone generating technology:
|
Corona discharge, 99% pure quartz tube, Titanium electrode
|
Cooling way:
|
Air cooling |
Continuous operation:
|
Available for non-stop working when will cooling fan
|
Input voltage
|
12V DC (24V DC optional; 100-240VAc optional)
|
Power
|
< 6w
|
Size Generator L x W x H (mm)
|
73.6 x 40 x 30 mm
|
Size Electronic L x W x H (mm)
|
100 x 35 x 26 mm ( potted )
|
Weight
|
0.17 kg
|
| Standard Packing |
60pcs / box |
Product Drawing:
Packing
YOUMO AQUAPURE OZQS0.2-D 300mg ozone tube:
1>. Standard export carton packing
2>. 60pc / box
3>. carton box size:45*33*33 cm ; 10kg / carton box
DELIVERY TIME:
1> samples------------within 2 days after payment arrive
2> batch orders-------2-30 days after payment deposit
