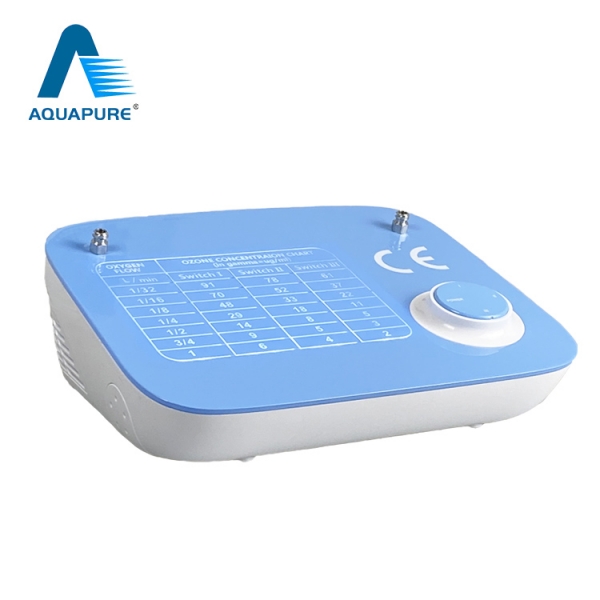

超纯双玻璃电极臭氧治疗仪MOP0.3-AD

这个医用臭氧发生器在电极之间使用双纯石英壁，是一种新的专利设计，可提供超纯臭氧和恒定稳定的臭氧浓度输出。

产品详情

MEDICAL OZONE GENERATOR MOP0.3-AD
----100% Double Quartz Glass Electrode

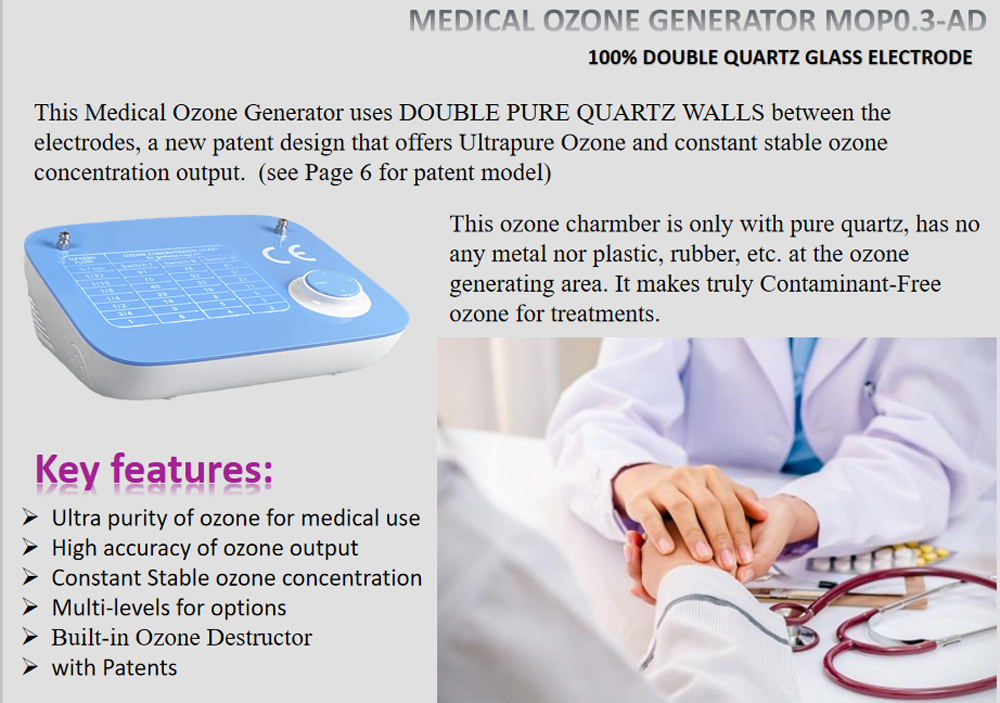

Brief Introduction:

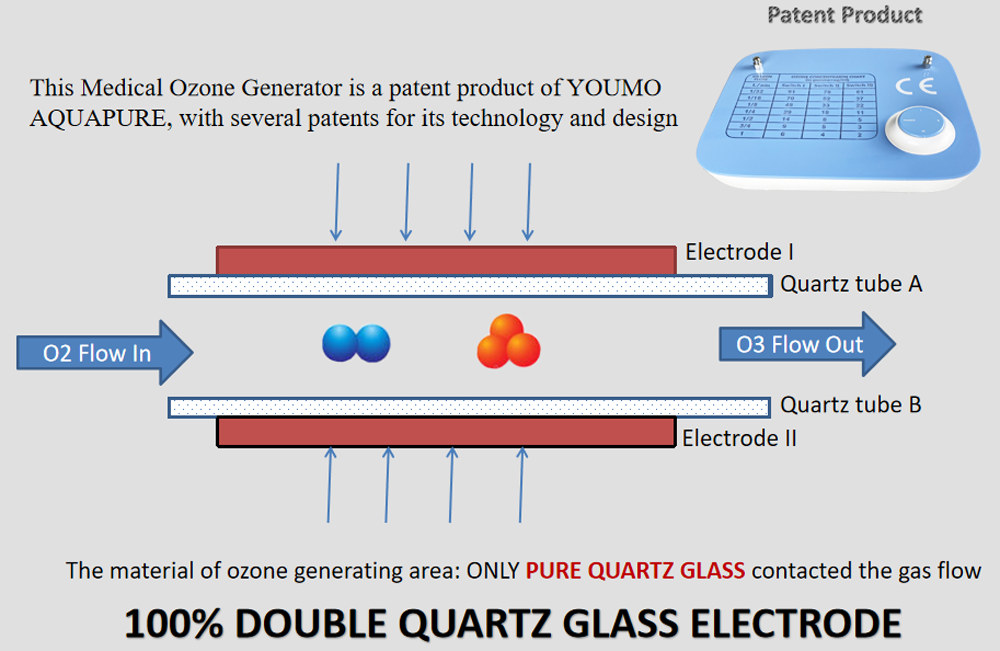

This Medical Ozone Generator uses DOUBLE PURE QUARTZ WALLS between the electrodes, a new patent design that offers Ultrapure Ozone and constant stable ozone concentration output.
This ozone charmber is only with pure quartz, has no any metal nor plastic, rubber, etc. at the ozone generating area. It makes truly Contaminant-Free ozone for treatments.

Key Features:

1. Ultra purity of ozone for medical use
2. High accuracy of ozone output
3. Constant Stable ozone concentration
4. Multi-levels for options

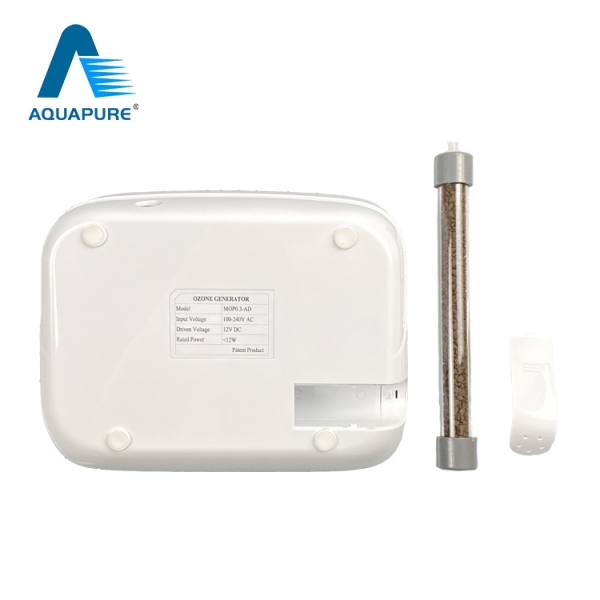

5. Built-in Ozone Destructor
6. with Patents

Technical Specifications：

Model No.	MOP0.3-AD
Ozone Concentrations:	2 ~ 108 ug/mL （ 1 ug/mL = 1 gamma = 1 mg/L ） Adjustable

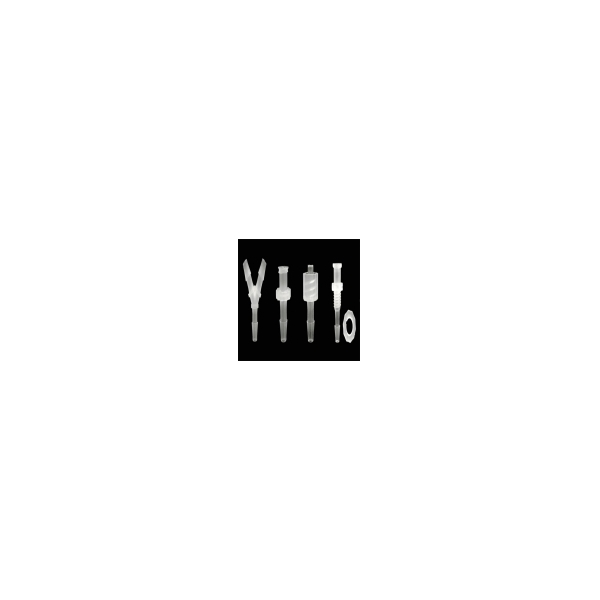

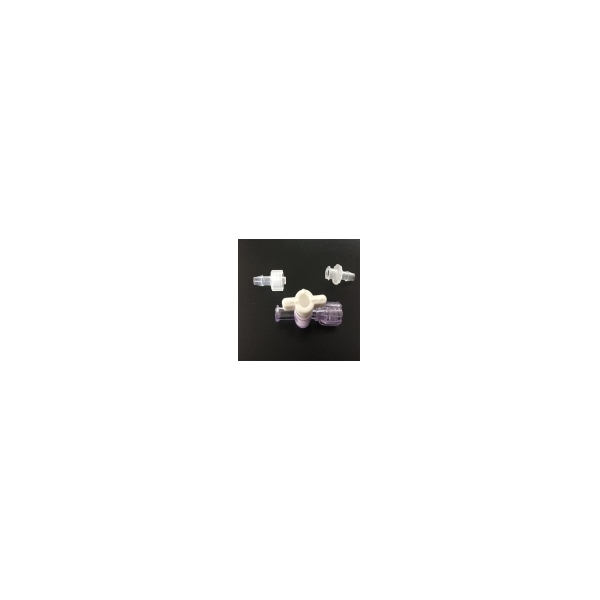

Connection of Oxygen Inlet, Ozone Outlet & Ozone Destructor Inlet	Standard Luer Lock Connector
Cooling System	4000 RPM , turbo brushless cooling fan
Ozone Module	100% Double Quartz Glass Electrode (Patent Design）
Life	> 10,000 hours
Input Voltage	12V DC (100-240V AC to 12V DC adaptor)
Rated Power	< 12W
Operating Temperature	0℃ ~ 40℃ (ozone conc. chart is based on 25℃)
Storage Temperature	-10℃ ~ 60℃
Product Size(L x W x H)	22817680 mm
Package Box Size(L x W x H)	330 230150 mm
Gross weight	1.5 kg （if with oxygen tank regulator: 1.9 kg)
