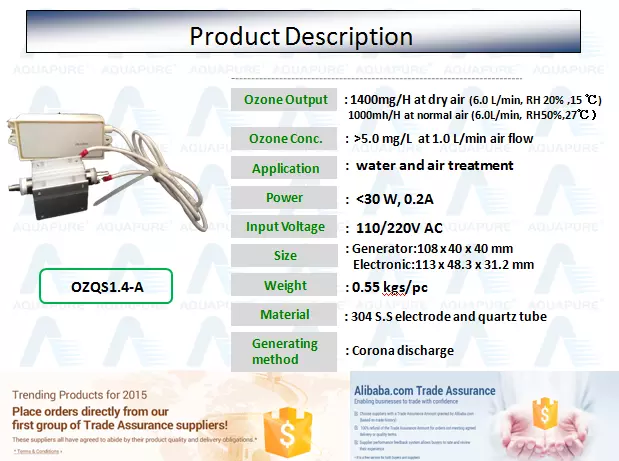

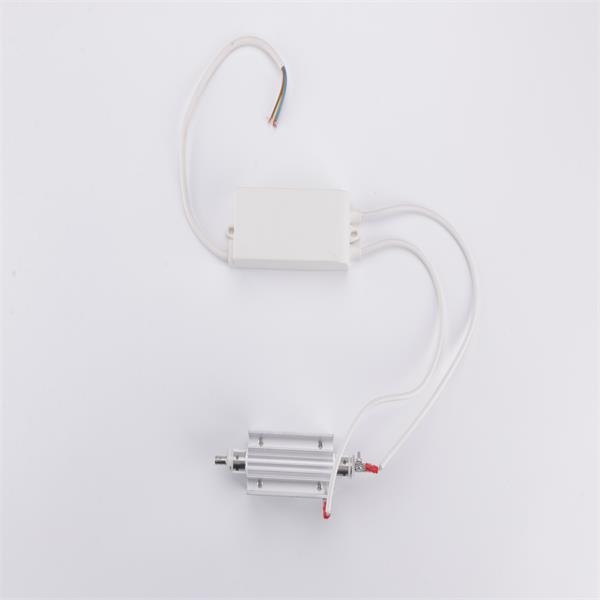

TECHNICAL SPECIFICATION:

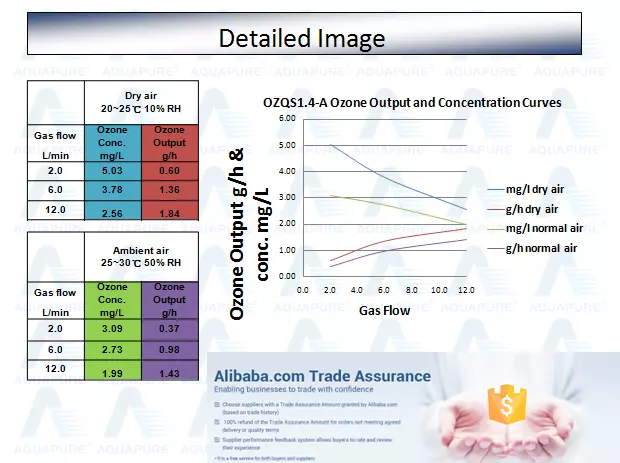

Ozone Output

1400mg/H at dry air (6.0 L/min, RH 20% ,25 ℃)

1800mg/H at normal air air(12.0 L/min, RH 50% ,27 ℃

Ozone Concentration

> 5.0 mg/L at1.0 L/min gas flow

Gas Flow

6.0 L/min recommended

Output Connection

OD 5.0 mm

Continuous operation

24 h/day with cooling system

Ozone generating method

Corona discharge

Input voltage

230 VAC

Power input

< 30W

Operating temperature

-10 °C~ +60 °C

Storage temperature

-20 °C~ +70 °C

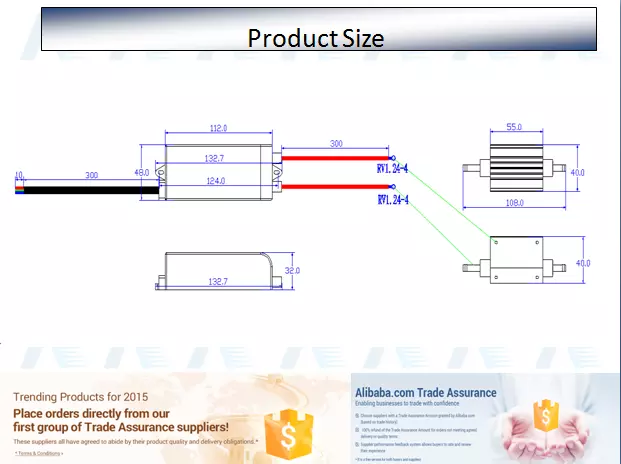

Size Generator L x W x H (mm)

108 x 40 x 40

Size Electronic L x W x H (mm)

113 x 48.3 x 31.2  potted

Weight

0.55 kgs

Able to be used

water or air treatment
