ozone parts with accessories

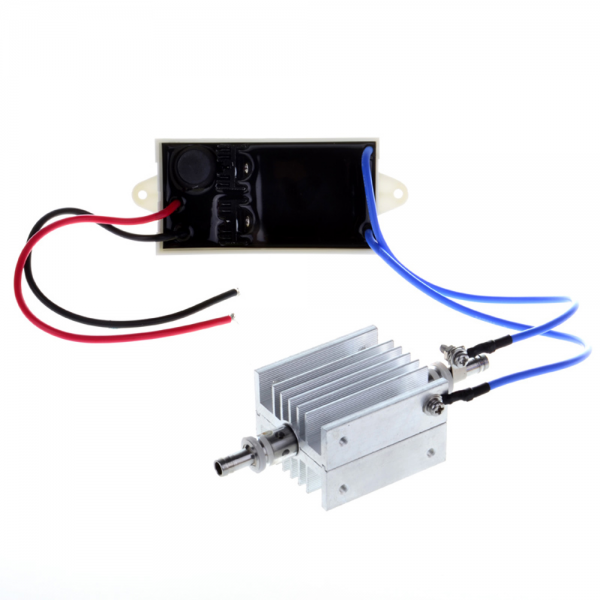

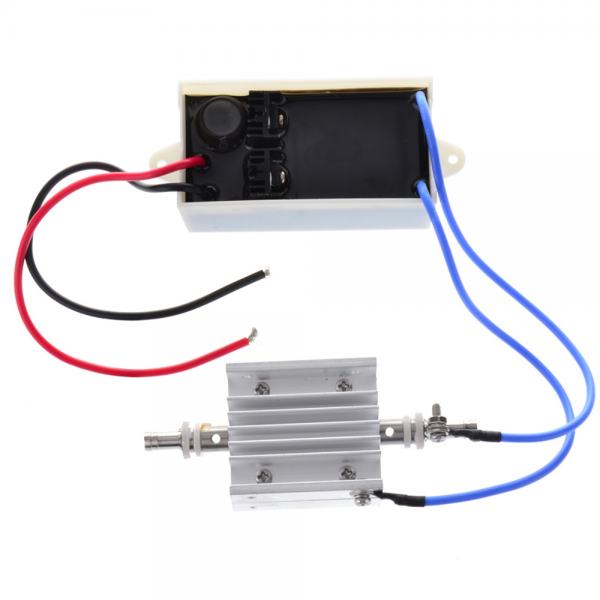

Ozone Module OZQS0.5-D12v 500mg powerful ozone generator parts for air and water disinfections

OZQS0.5-D
Ozone generator is a device used to produce ozone gas (O3). German AQUAPURE ozone generation
Devices are widely used in drinking water, sewage, industrial oxidation, food processing and preservation, pharmaceutical synthesis,
In the field of space sterilization and other fields, we have owned a large group of high-end cooperative customers for more than ten years.

Fast contact

  • Ozone Module OZQS0.5-D 12v 500mg powerful ozone generator parts for air and water disinfections

    Brief introduction:

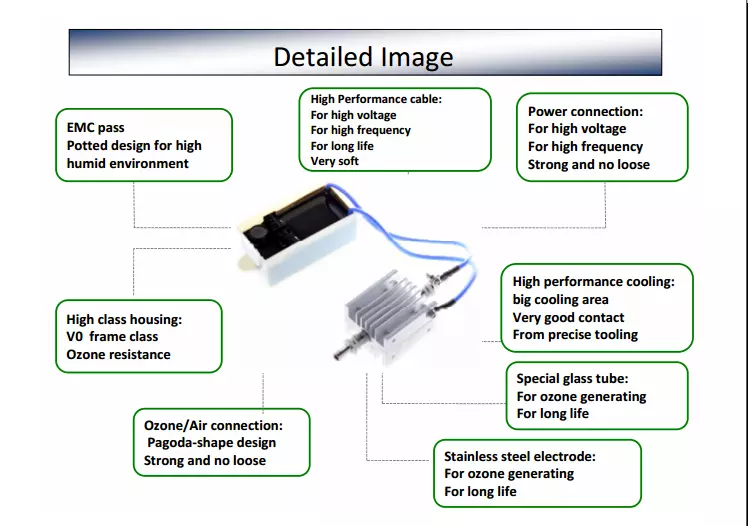

    This ozone generator cell parts  use the latest Quartz Tube and Stainless Steel Electrode technology
    which produce stable ozone output and high ozone concentration You can save lots of costs as they have a life of over 10,000 hours and high performance.

    1. Ozone output: 1000 mg/h

    2. Ozone generator: Quartz Tube and Stainless steel Electrode

    3. High ozone concentration: > 5.0 mg/L at 1 L/min

    4. Light weight: only 0.35 Kg

    5. Long Life: > 10,000 hours

    6. Low power consumption

    7. Two different applications: a) for air application; b) for water application

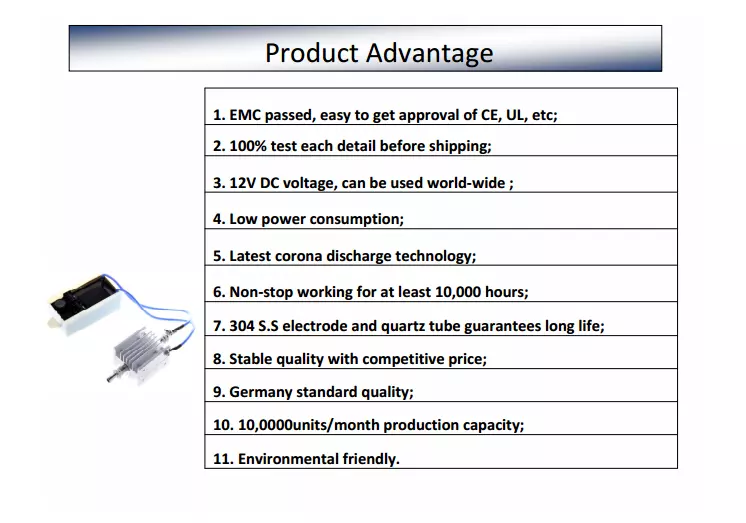

    Features:

    1. Ozone output: 500mg/h with dry air; 350mg/h with normal air at 2.5L/min gas flow
    2. Non-stop working available: built-in cooling fan
    3. Ozone generator: Quartz Tube and Stainless Steel Electrode  type (Titanium available)
    4. High ozone concentration: > 5.0 mg/L at 1 L/min--2.0 L/min gas
    5. Light weight: only 0.48 Kgs as net weight
    6. Low power consumption
    7. Able to be used as a)Water application; b)Air application
    8. 100% ozone resistance material

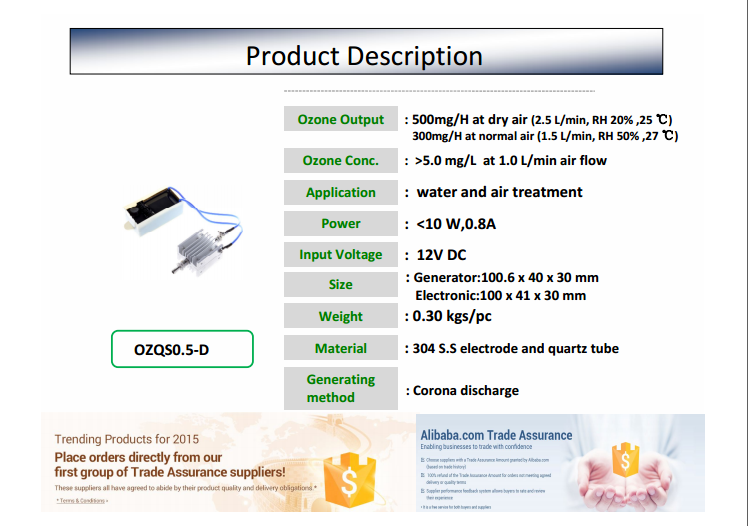

    TECHNICAL SPECIFICATION

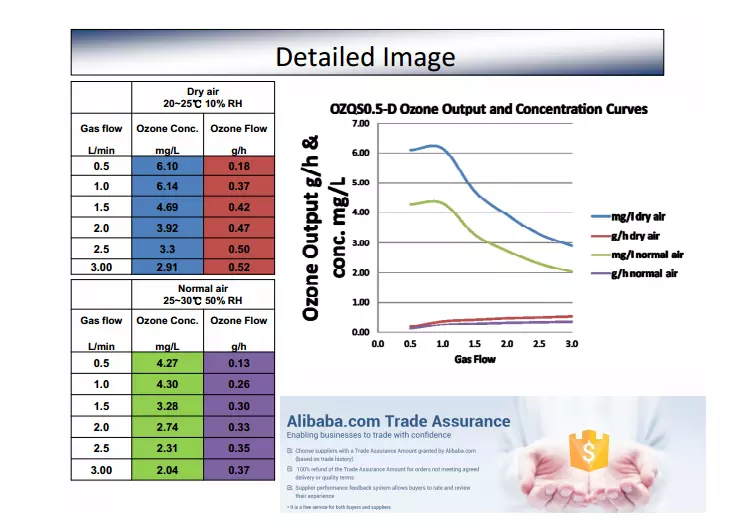

    Ozone Output

    0.5 g/h at 2.5L/min with dry air;

    0.35g/h at 2.5 L/min with normal air

    Ozone Concentration

    > 5.0 mg/L  at 1.0-2.0  L/min gas flow

    Gas Flow

    3.0L/min  recommended

    Material

    quartz tube & stainless steel electrode

    Output Connection

    OD 5.0 mm

    Continuous operation

    24 h/day with cooling system

    Ozone generating method

    Corona discharge

    Input voltage

    12V DC

    Power input

    < 12 W

    Operating temperature

    -10 °C~ +60 °C

    Storage temperature

    -20 °C~ +70 °C

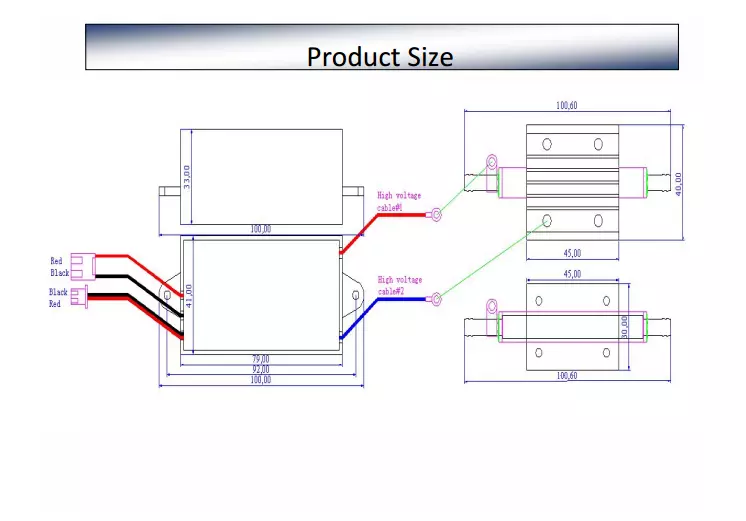

    Size  (L x W x H)

    130 x 60.5 x 79 mm

    Weight

    0.48 kgs

    Moistureproof design

    electronics be potted with AB glue

    Able to be used

    water or air treatment



    DELIVERY TIME:
    1> samples------------within 2 days after payment arrive
    2> batch orders-------2-30 days after payment deposit
