ozone parts with accessories

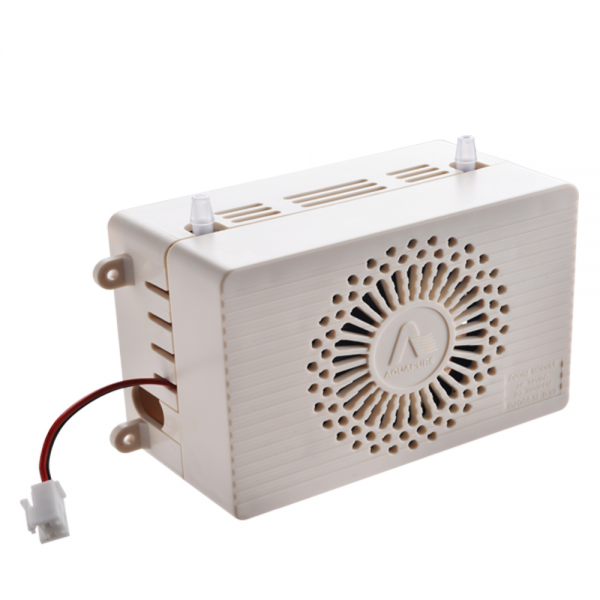

Ozone Module with Fan OZQS0.5F-D V212V stable concentration 500mg/h ozone gas

This ozone module is speically designed for ozone laundry series products.
It can be fixed on a plastic housing wall easily.
The cooling fan is built inside to make the product available for non-stop working.
The looking is not only nice, but also with good ventilations.
The gas inlet port is available for dry air or oxygen source.
You can get stable ozone output and high ozone concentration from such a small size cell kit, and get it ran for long life

Fast contact

  • Ozone Module with Fan OZQS0.5F-D V212V stable concentration 500mg/h ozone gas

    Brief introduction:
    This amazing Corona Discharge Ozone Generator System (also called ozonizer purifier system)
    is the most compact unit  all over the world which has a built in air pump and can produce 1000mg/h of ozone.
    1.  Ozone output: 0.5 g/h
    2.   High ozone concentration:  > 5.0 mg/L at 1.0 L/min
    3.   All-in-one design:built-in ozone cell, fan
    4.  Small size: 130 x 60.5 x 79  mm
    5.   Light weight: only 0.55 Kg
    6.   Low power consumption: 12V DC,  12W
    7.   Air inlet can be attached to an air dryer
    8.   Able to be used as Water Purifier and Air Purifier

    Features:
    ---- 100% test for ozone concentration & ozone output
    ---- 100% inside ozone tolerance
    ----  100% life burning test
    ----  100% ozone compatible material
    ----  Suitable ozone concentrations
    ----- Available for different types of water dispensers / watercoolersfor

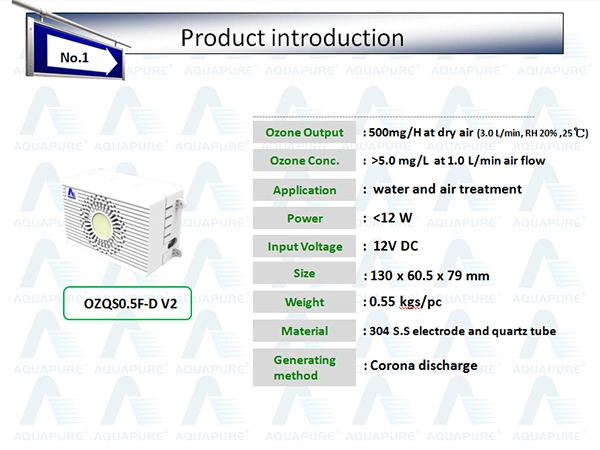

    TECHNICAL SPECIFICATION

    TECHNICAL SPECIFICATION

    Ozone Output

    0.5 g/h

    Ozone concentration

    >  5.0 mg/L  at 1.0 L/min  air flow

    Air Flow

    value 3.0 L/min

    Input & Output connections

    5.0 mm diameter

    Continuous operation

    24 hours/day

    Cooling system

    Air cooling

    Ozone generating method

    Corona discharge

    Input voltage

    12V DC,  12 W

    Operating temperature

    -10 deg C ~ +60 deg C

    Storage temperature

    -20 deg C ~ +70 deg C

    Size generator (L x L x H)

    130 x 60.5 x 79 mm

    Weight

     0.55 Kg







    DELIVERY TIME:
    1> samples------------within 2 days after payment arrive
    2> batch orders-------2-30 days after payment deposit
