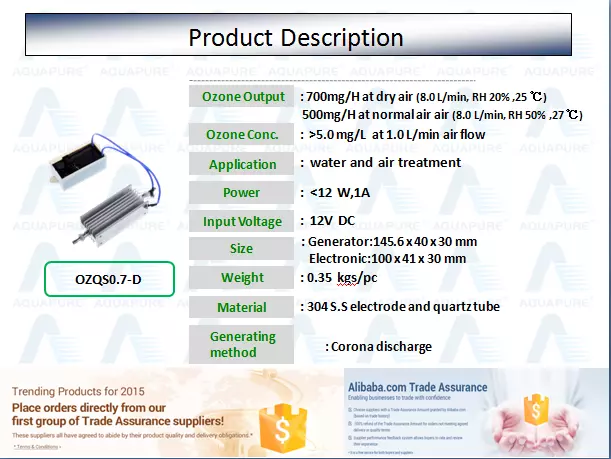

TECHNICAL SPECIFICATION:

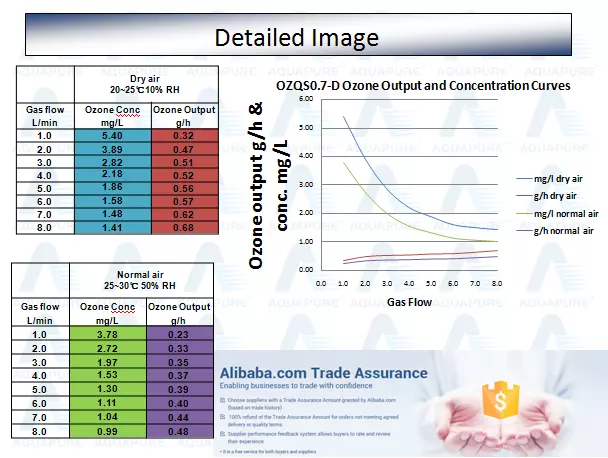

Ozone Output

700mg/H at dry air (8.0 L/min, RH 20% ,25 ℃)

 500mg/H at normal air air(8.0 L/min, RH 50% ,27 ℃

Ozone Concentration

> 5.0 mg/L at1.0 L/min gas flow

Gas Flow

8.0 L/min recommended

Output Connection

OD 5.0 mm

Continuous operation

24 h/day with cooling system

Ozone generating method

Corona discharge

Input voltage

12V DC

Power input

< 12W

Operating temperature

-10 °C~ +60 °C

Storage temperature

-20 °C~ +70 °C

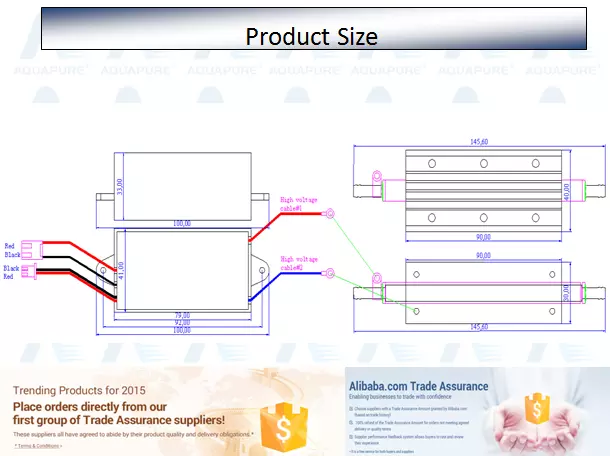

Size Generator L x W x H (mm)

145.6x40x30 mm

Size Electronic L x W x H (mm)

100 x 35 x 26 potted

Weight

0.35 kgs

Able to be used

water or air treatment
