ODM/OEM

Ozone Generating Cell 300mg (24V DC)

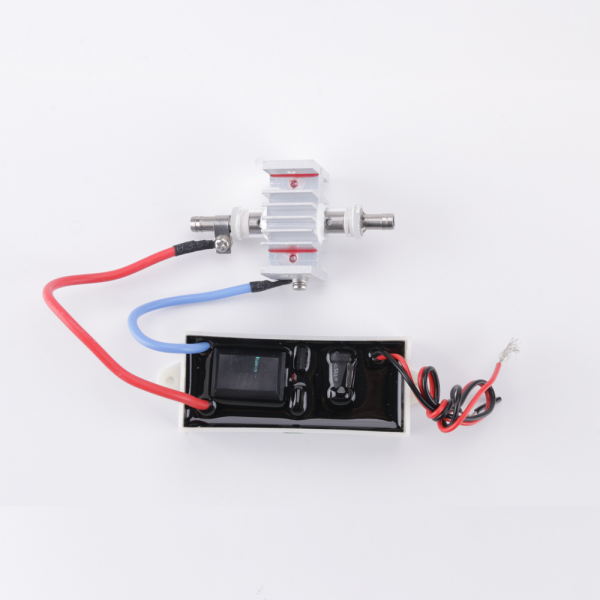

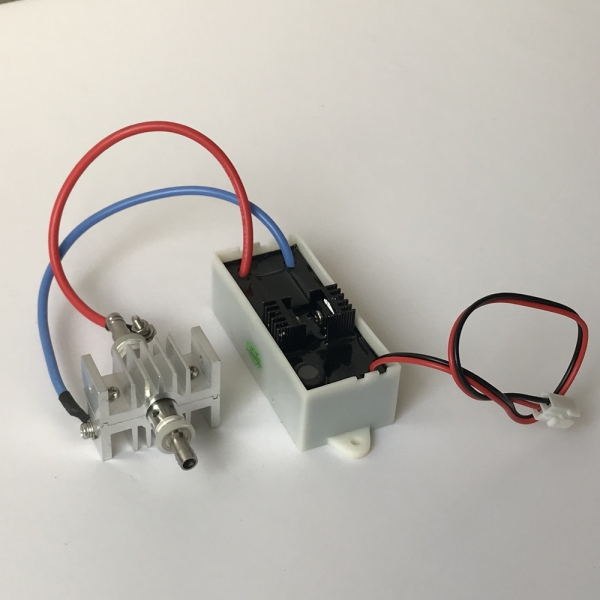

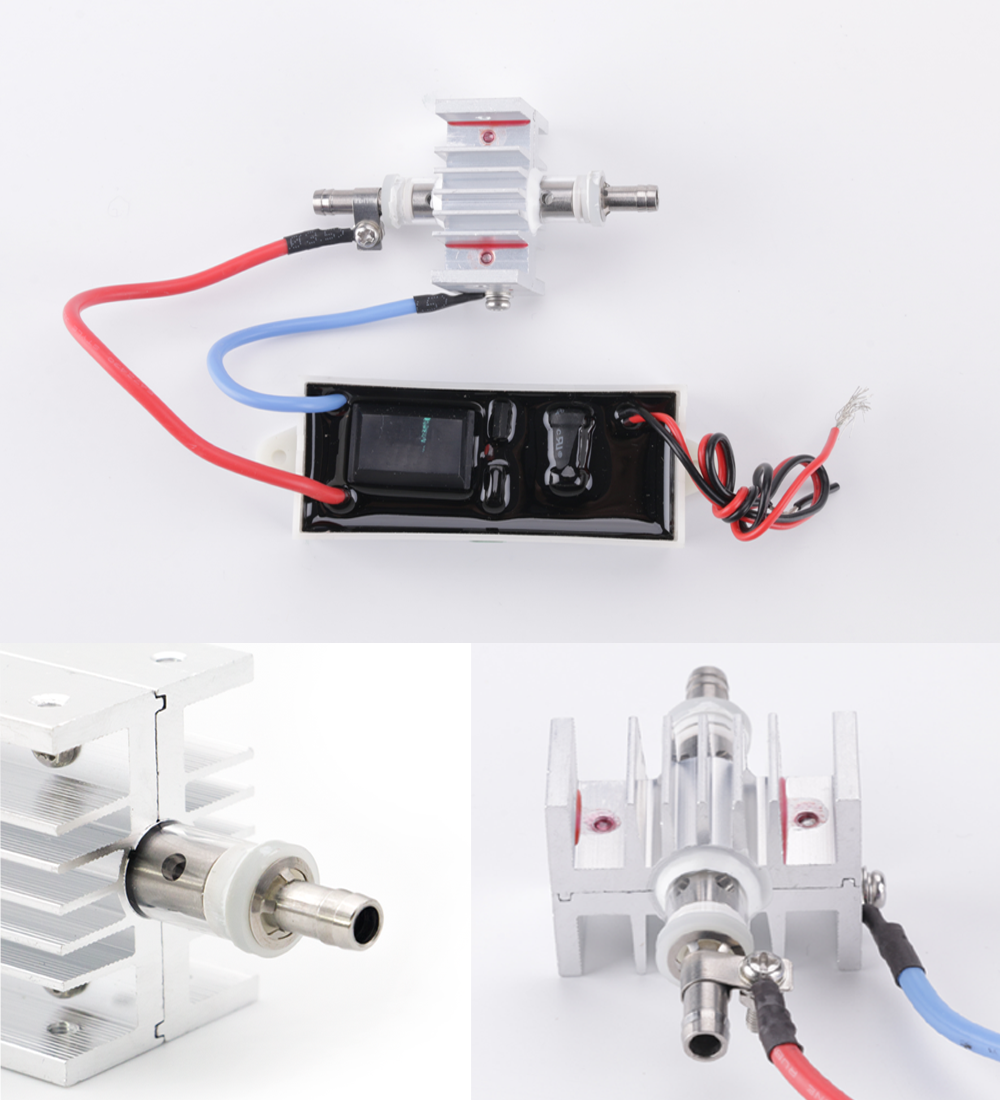

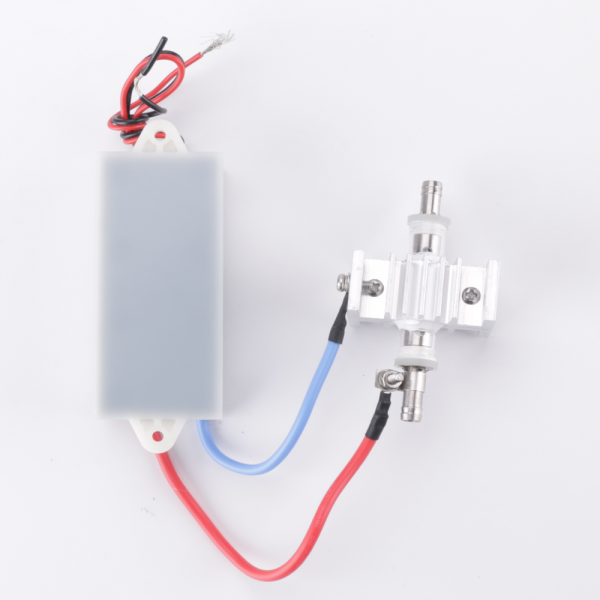

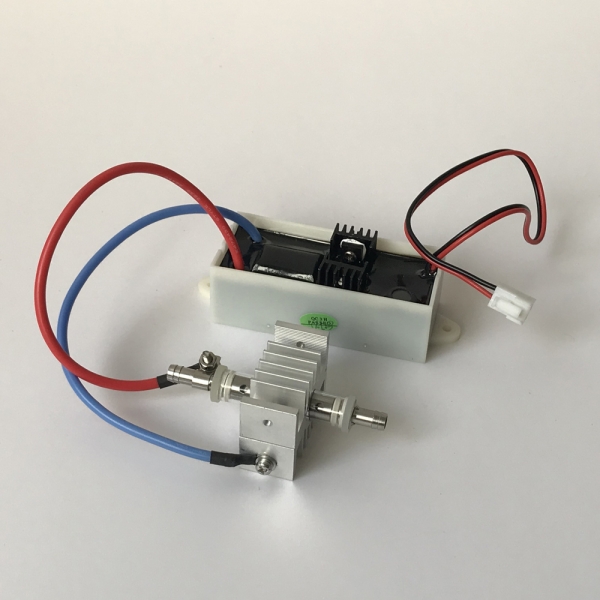

AQUAPURE Ozone Generating Cell 300mg (24V DC)
Not many applications would request 24V Voltage input for ozone generators. However, for some cases, for example, the water dispenser / watercooler, it normally just request for 24VDC power input. AQUAPURE specially develops this ozone cell module for these applications. It uses the latest Quartz tube with SS or Titanium electrode technology,  which is the best to get stable ozone output and high ozone concentration.

Fast contact

  • AQUAPURE Ozone Generating Cell 300mg (24V DC)

    Brief introduction:

    Not many applications would request 24V Voltage input for ozone generators. However, for some cases, for example, the water dispenser / watercooler, it normally just request for 24VDC power input. AQUAPURE specially develops this ozone cell module for these applications. It uses the latest Quartz tube with SS or Titanium electrode technology,  which is the best to get stable ozone output and high ozone concentration.



    Features:

    ---- 100% test for ozone concentration & ozone output
    ---- 100% inside ozone tolerance
    ----  100% life burning test
    ----  100% ozone compatible material
    ----- 24V DC running
    ----  Suitable for water treatment/air treatment
    ----  100mg/h-300mg/h ozone output for adjust

    Production Specifications

    please contact us for ozone test reports

    Model number OZQS0.2-D 24V
    Ozone Output 1
    		 100 mg/h at 1.0 L/min normal air
    Ozone Output 2
    		 200 mg/h at 1.0 L/min dry air
    Ozone Output 3
    		 300 mg/h at 2.8 L/min normal air
    Gas source
    		 Ambient air, dry air and oxygen source
    Ozone generating technology:
    		 Corona discharge, quartz tube
    Cooling way:
    		 Air cooling
    Continuous operation:
    		 Available for non-stop working when will cooling fan
    Input voltage
    		 24V DC  (12V DC optional; 100-240VAc optional)
    Power
    		 <  6w
    Size Generator L x W x H (mm)
    		 73.6 x 40 x 30 mm
    Size Electronic L x W x H (mm)
    		 100 x 35 x 26 mm  ( potted )
    Weight
    		 0.17 kg
    Standard Packing 60pcs / box


    Product Drawing:




    Packing

    YOUMO AQUAPURE OZQS0.2-D  300mg ozone tube:
    1>. Standard export carton packing
    2>. 60pc / box
    3>. carton box size:45*33*33 cm ; 10kg / carton box

    DELIVERY TIME:

    1> samples------------within 2 days after payment arrive
    2> batch orders-------2-30 days after payment deposit




    Related Products



    FAQ

    What‘s your advantage? Why we choose you?
    1>. High Quality products and professional
    2>. over 10 years experience, ODM, OEM available
    3>. good price, fast shipments

    What‘s the Payment?
    1> T/T
    2> Credit card, Paypal
    3> Western Union, L/C

    Do you make your own products or just a trading company?
    1> make our own products
    2> we design them and make them
    3> we offer ODM,OEM services

    How can I get some samples?
    Just leave messages or send email to us , we will contact you within 24 hours

    What is your warrantty?
    For all the standards products, we offer >1 year warranty
