TECHNICAL SPECIFICATION:
|
Ozone Output |
1.0 g/h at 5.0 L/min |
|
Ozone concentration |
> 5.0 mg/L at 1.0 L/min air flow |
|
Gas source |
Dry air or oxygen source recommended |
|
Air Flow |
value 5.0 L/min for air application, < 20 L/min for water application |
|
Output connections |
5.0 mm diameter |
|
Continuous operation |
24 h/day |
|
Cooling system |
Air cooling, 40 CFM fan recommended |
|

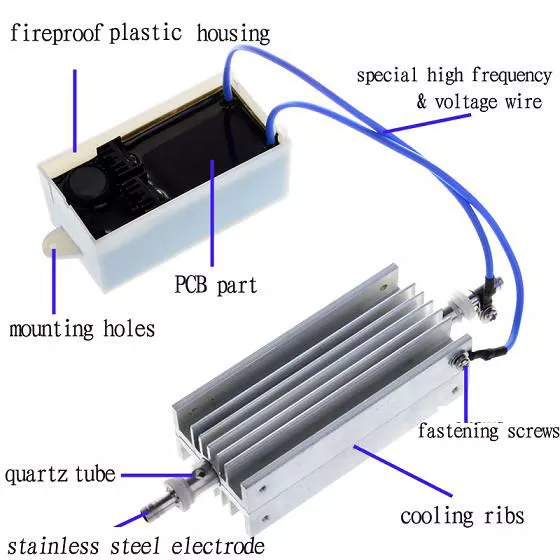

Ozone generating method |
Corona discharge, Stainless steel electrode |
|
Input voltage |
12 V DC |
|
Power |
22 W |
|
Operating temperature |
-10 deg C ~ +60 deg C |
|
Storage temperature |
-20 deg C ~ +70 deg C |
|
Size Generator |
90 x 40 x 30 mm |
|
Size Electronics |
78 x 40 x 33 mm |
|
Weight |
0.35 Kg |
Advantages Compared With Disinfectants and Oxidants
Ozone bas several significant advantages over its chemical alternatives:
Ozone can be generated on-site.
Ozone is one of the most active, readily available oxidizing agents.
Ozone rapidly decomposes to oxygen leaving no traces.
Reactions do not produce toxic halogenated compounds.
Ozone acts more rapidly, and more completely than other common disinfecting agents do.
Ozone reacts swiftly and effectively on all strains of viruses.
